SKU
BT-70838BG
BT-70838BG, Upgraded to BT-70838CV
Chemistry:
Li-ion
BT-70838BG
High capacity full size SMP battery for use in Land Warrior Systems and World Wide Soldier Modernization Programs.
Please refer to BT-70838CV, our highest capacity Full Size SMP battery or contact us for more information
• Complies with SMBus v1.1 and SBData v1.1
• UN/DOT 38.3 Rating: 110 Wh
• Comparable to: BT-70838-2/3, BT-70838-2/3A, BT-70838-2/3Bx, BT-70838, BT-70838A, BT-70838Bx, and
BT-70838-1/3Bx
• Absolute state of charge indicator

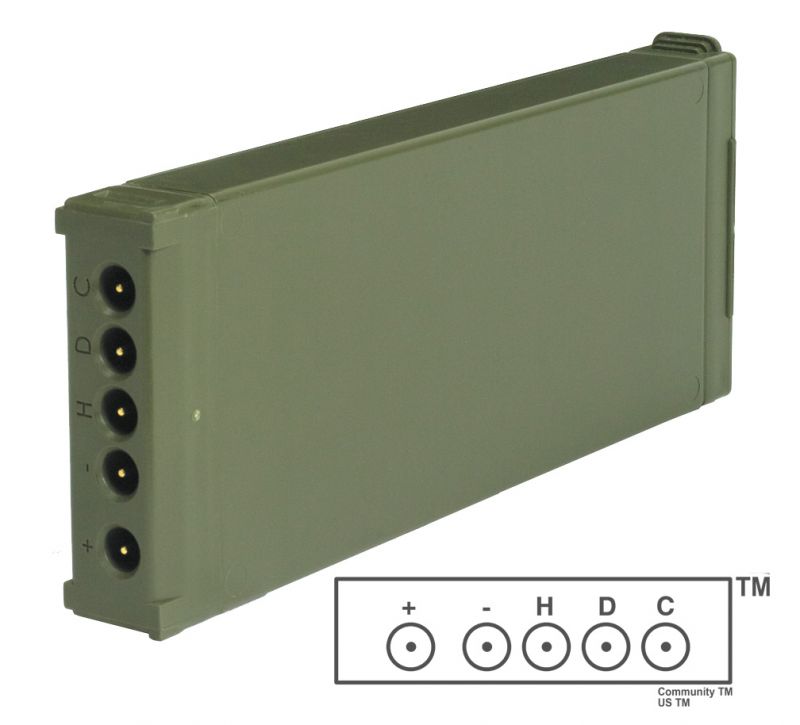

• Blind mate connector for easy installation
Typically used in:
• Land Warrior System (German Soldier Modernization Program)
• Land Warrior Programs
• Soldier Modernization Programs
Dimensions
Length: 7.795 +/- 0.05
Width: 3.033 +/- 0.02
Height: 0.908 +/- 0.02
Other
| SKU | BT-70838BG |
|---|---|
| Nominal Voltage | 10.8V |
| Ah | 9.6 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -32°C to +60°C (-25.6°F to +140°F) |
| Storage Temperature | -40°C to +55°C (-40°F to +131°F) |
| Connector | BT Designed Mating Connector |
| State of Charge Indicator | Yes |
| Battery Type | Rechargeable |
| Smart Battery | SMBus |
| Brenergy | No |
