SKU
BT-70716BE
MBITR PRC-148, 5.8 Ah
NSN
6140-01-606-9491
Chemistry:
Li-ion

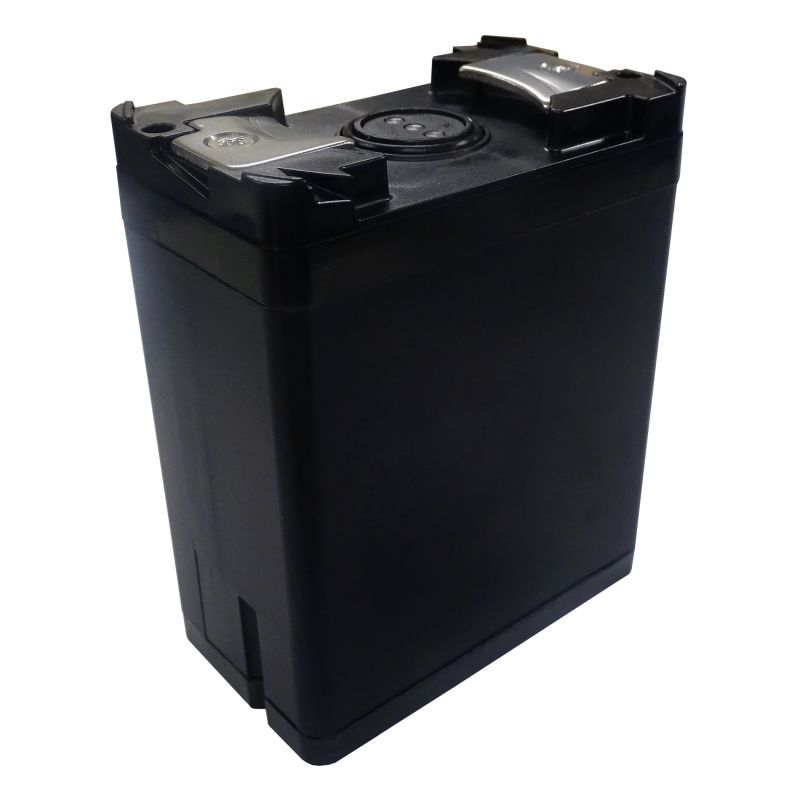

5.8 Ah, Rechargeable Lithium-Ion Battery
Meets or exceeds all military rechargeable durability specifications. Fully compatible with all AN/PRC-148 variants, chargers and the WAVE radio.
• Communicates using a Single Wire DQ interface
• UN/DOT 38.3 Rating: 63 Wh
Typically used in:
• Wave Relay System
• AN/PRC-148
• TRC-9110
• Silvus StreamCaster 4200
Dimensions
Length: 2.6
Width: 1.6
Height: 3.4
Weight: 1.0 lbs.
Other
| SKU | BT-70716BE |
|---|---|
| Nominal Voltage | 10.8V |
| Ah | 5.8 |
| Maximum Voltage | 12.6V |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Connector | Flat Contacts (bottom), Fly Wheel Connection (top) |
| State of Charge Indicator | No |
| Battery Type | Rechargeable |
| Smart Battery | DQ |
| Brenergy | No |
